Sale!

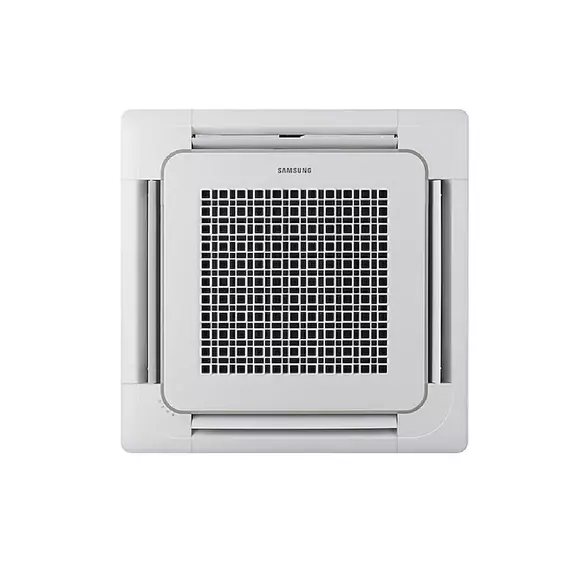

Samsung Cassette Air Conditioner 036HC4TED 36000 BTU

Specification: . Model Name: Indoor Unit AC100KN4DKH/EU . Indoor Unit Type: 360 Cassette . Power Supply (Indoor Unit) [Φ, #, V, Hz] 220-240,50 . Cooling [kW]: 3.50/10.00/13.5kW . Heating [kW]: 2.20/10.00/15.5kW . Air Flow Rate (High / Mid / Low) [CMM] 25.5/21.0/17.5CMM . Piping Connections Liquid Pipe (Φ, mm) 9.52mm . Liquid Pipe (Φ, inch) […]

Category: Air conditioner, Eletronics

Description
Reviews (0)

Description

Specification:
. Model Name: Indoor Unit AC100KN4DKH/EU
. Indoor Unit Type: 360 Cassette
. Power Supply (Indoor Unit) [Φ, #, V, Hz] 220-240,50
. Cooling [kW]: 3.50/10.00/13.5kW
. Heating [kW]: 2.20/10.00/15.5kW
. Air Flow Rate (High / Mid / Low) [CMM] 25.5/21.0/17.5CMM
. Piping Connections Liquid Pipe (Φ, mm) 9.52mm
. Liquid Pipe (Φ, inch) 3/8
. Gas Pipe (Φ, mm)15.9mm
. Gas Pipe (Φ, inch) 5/8
. Drainpipe (Φ,mm) VP25(OD32/ID25)
. Field Wiring Power Source Wire 1.5 ~ 2.5
. Transmission Cable 0.75 ~ 1.50
. Refrigerant Type R410A
. Sound Pressure 40/36/32dBA
. External Dimension (Indoor Unit) Net Weight(kg) 30kg
. Shipping Weight (kg) 30kg
. Net Dimensions (WxHxD) (mm) 947 x 365 x 947mm
. Shipping Dimensions (WxHxD) (mm) 990 x 390 x 990mm
