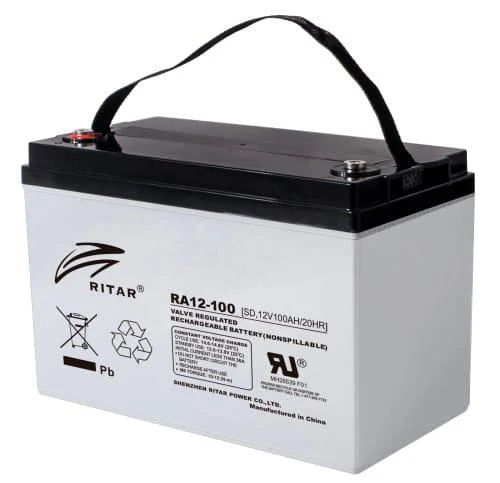

RITA-100 12V

Description

• Model: RITA-100 (12V, 100Ah)
• Cells Per Unit: 6
• Voltage Per Unit: 12V
• Nominal Capacity: 100Ah at a 10-hour rate to 1.80V per cell at 25°C
• Weight: Approximately 27.5 kg (with a tolerance of ±3.0%)
• Internal Resistance: Approximately 6.5 mΩ
• Max. Discharge Current: 1000A for 5 seconds
• Short Circuit Current: 2150A
• Design Life: 12 years in float service
• Max. Charging Current: 30.0 A
• Dimensions:
  • Length: 328 mm (12.9 inches)
  • Width: 172 mm (6.77 inches)
  • Height: 215 mm (8.46 inches)
  • Total Height: 220 mm (8.66 inches)
• Terminal Types: F5 (M8), F12 (M8), L7
